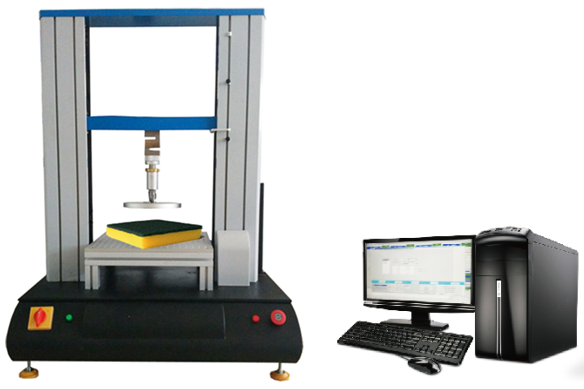

HD-F750A Foam Compression Hardness Tester

EQUIPMENT DETAILS



                         For reference only



General Specifications

Packaging Dimensions: (W*D*H) 510*880*1490MM

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 170kg



Applications & Test Purpose

Widely used in various types of metal, metal, rubber, plastics, leather shoes, clothing, textile, insulators, wire and cable, terminals and other types of materials, testing the tensile, tearing and peeling, compressive strength, bending shear and three point bending, elongation, sponge, foam and other porous elastic material of the indentation hardness and compression calculation of pressure ratio...... And other physical testing performance.


Design Standard: ISO 2439, ASTM D 3574





STANDARD FEATURES



Control and display

Computer

Sensor

Load cell

Capacity

500KG

Unit

Kg, N, LB

Up plate

Diameter 200mm, bottom fillet R1mm

Low plate

38380mm, holes diameter 6mm, space 20mm, max stroke 200mm

Max stroke

1200mm (include fixture)

Test speed

0.1~500mm/min

Load decomposition degree

1/250000

Load accuracy

Less than 0.5%

Motor

Servo motor

Driver

Taiwan high precision ball screw

Power

Single phase, 220V, 50Hz

Weight

170KG

Dimension

510*880*1490mm

Accessories

One computer with software

Sponge tensile clamp set

Sponge pressure depression pressure plate




Video links for reference:

https://www.youtube.com/watch?v=sOUVyb-yoes

https://www.youtube.com/watch?v=ggi8c_vXlBw

https://www.youtube.com/watch?v=RB4ka9TCDco

https://www.youtube.com/watch?v=t7IjtTA-M7E&t=6s











HD-F750 Foam Compression Hardness Tester

EQUIPMENT DETAILS







                                    For reference only


GENERAL SPECIFICATIONS



Packaging Dimensions: (W*D*H) 700*920*1200MM

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 170kg



APPLICATIONS& TEST PURPOSE

The machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.



DESIGN STANDARD

ISO 2439, ASTM D 3574





EQUIPMENT STRUSTURE










STANDARD FEATURES



Control and display

Computer

Sensor

Load cell

Capacity

200KG

Unit

Kg, N, LB

Up plate

Diameter 200mm, bottom fillet R1mm

Low plate

40400mm, holes diameter 6mm, space 20mm

Max stroke

500mm

Test speed

0500mm/min

Motor

Servo motor

Driver

Taiwan high precision ball screw

Power

Single phase, 220V, 50Hz

Weight

160KG

Dimension

790×590×1010mm

Accessories

One computer with software (optional)





A physical picture from the client



Main configuration



Motor

Panasonic servo motor + Driver

Decelerator

Taiwan Liming

Screw rod

Taiwan Brand

Software

TM2101

Sensor

Transcell









Quality guarantee
