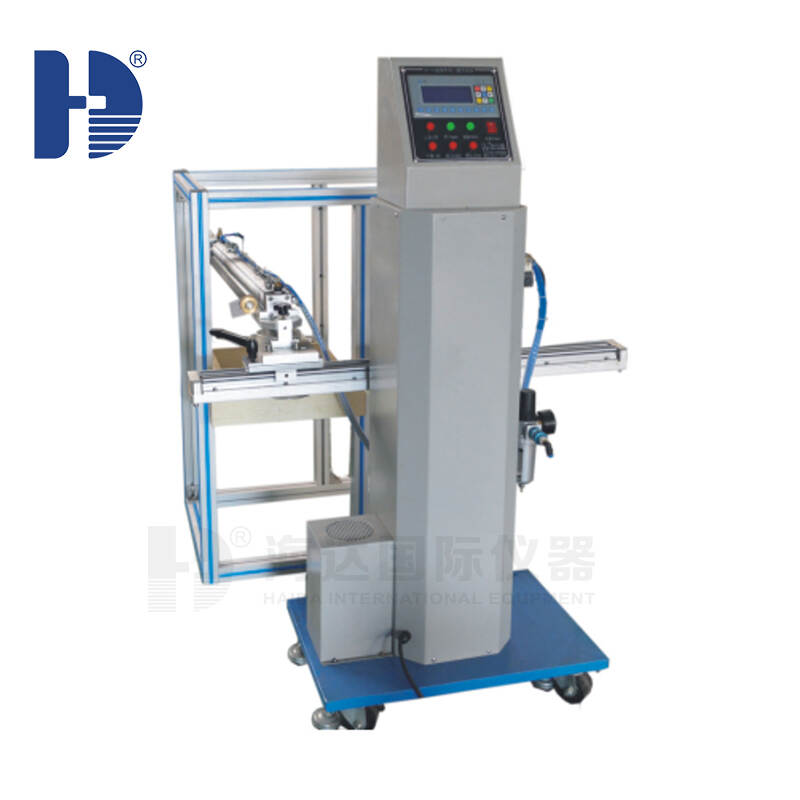

HD-F749 Drawer and Door Durability Tester
Quick Details
Min. Order:
100 piece(s)
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Quick Details
OK
Contact Supplier

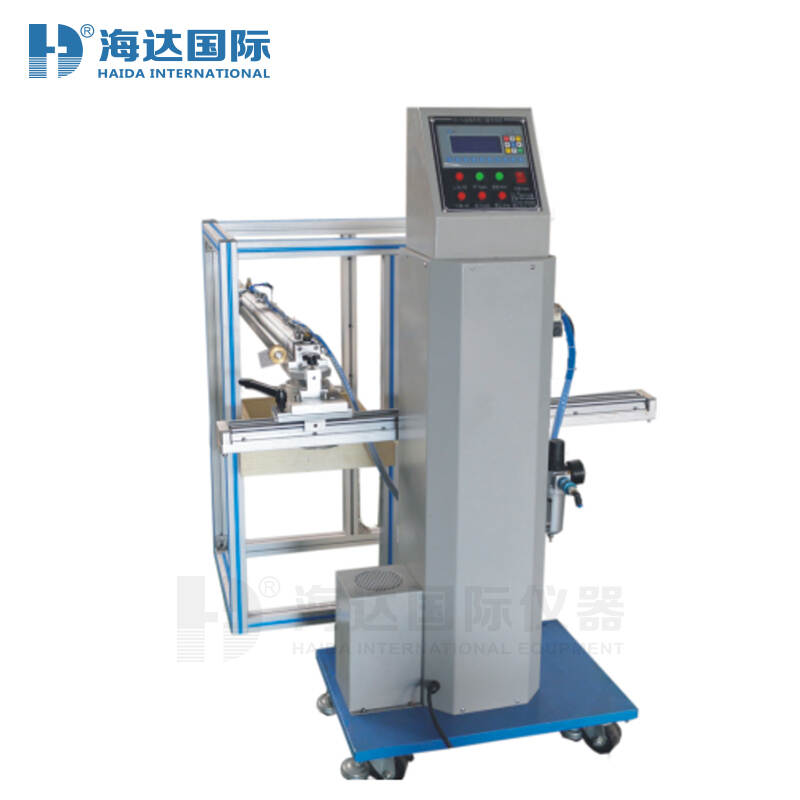

HD-F749 Drawer and Door Durability Tester

EQUIPMENT DETAILS



 (for reference only)


EQUIPMENT DESCRIPTION

This machine is used in testing Drawer slide, slide rail. Our company developed a drawer / door push-pull test machine. it can accordance with domestic and international customers a variety of quality requirements, SCM control.



DESIGN STANDARD: BIFMA X5.5-2014 section 10 Extendible Element Cycle Test



EQUIPMENT FEATURES

Drawer height

150mm 800mm, the test arm can up and down be controlled, suitable for any kinds of drawer.

Test Speed

030 cyclic/ minute

Travel Error

≤±2.5mm

Test travel

0800mm

Controller

PLC control, LCD display interface

Power

1,AC 220V, 50Hz

Compressed air requirement

6 bar

6 digits pre-set counter for test cycle setting.

Base with wheels for free move






Quality guarantee

A)  Quality assurance items

The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)

1. During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;

2. If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;

3. If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;

4. Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B)  The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

 please keep the guarantee letter, if you lost it, please connect with us in a month.

 If the guarantee letter has been altered or it has no our stamp, it is useless.

C)  The following conditions need to be paid reasonably even in the assurance period:

 Natural reasons

 Operating mistakes

 Voltage is not fit for our operation instruction

 Repack it without our guides

 Damaged for borrowing to others

 Damaged for authorized machine modification

 Damaged for authorized calibration

 Authorized transshipment mistake

 Serve for long distance area

D)  Attentions

 Any service outside Guangdong, China, transport and travel fees shall be paid by customer.

 The apparatus try not to be used in the following situations:

a. Vibration, rocking the occasion.

b. Direct sunlight.

c. Hot, dusty, damp places.

d. To ensure safe, AC supply of the machine should be well grounded.

e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.

f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.

g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
