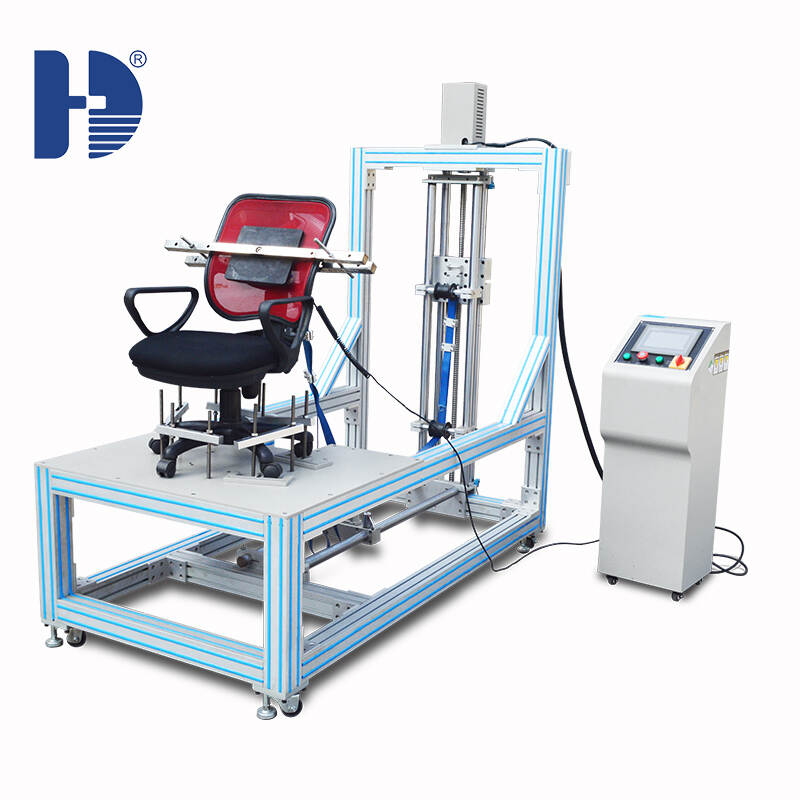

HD-F743 Chair Strength Tester

EQUIPMENT DETAILS

(only for reference)




      Arm Test- Vertical                                 Arm Test- Horizontal


DESCRIPTION

The machine is designed to test office chair arm ( vertical and horizonal test ) and back strength. It with PLC controller, touch screen interface to input test parameters, test force and times can be set.





GENERAL SPECIFICATIONS



Machine Dimensions: (W x D x H) 2100*1100*1700mm

Compressed air requirement: 6-7kg/ cm2

Electrical Consumption: 0.2KW

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 380kg





STANDARD FEATURES


Capacity

0-200kg

Setting time

0-99S ( adjustable)

PLC control

LCD touch screen interface

Motor

One servo motor & air cylinder to provide pull force

Test accessories

One test platform for arm test

Emergency Button

arm vertical test grips

Number and Cycles

One back strength test grips

Power

One phase, AC 220V, 50 Hz.





APPLICATION STANDARDS:

BIFMA X5.1-2017 section 5, 6, 12, 13, 14, 15





Reference Doc:  BIFMA X5.1-2017


Section 5 Backrest Strength Test  Static- Type I Test Procedure:

A force of 667N (150lbf) or 1001 N (225 lbf) shall be applied to the backrest at the backstop position for 0ne minute. Angle 70 ± 10 degrees, If the backrest/tilt lock mechanism will not accept the load due to gradual silpping of the adjustment mechanism during the load application, set the backrest to its most rearward(stopped) position, then apply the specified load(s). Remove the load



Section 6 Backrest Strength Test  Static- Type II & III Test Procedure:

     Same with section 5, only the force should be 667N (150lbf) or 1001 N (225 lbf), Angle 90 ± 10 degrees.



Section 12 Arm strength Test- Vertical- Static Test Procedure:

  A force of 750 N (169 lbf) or 1125 N (253 lbf) shall be applied for one minute. Remove the force





Section 13 Arm strength Test- Horizontal- Static Test Procedure:

A force of 445 N (100 lbf) or 667 N (150 lbf) shall be applied for 15 second in the outward direction.

Remove the force.



Section 14 Backrest Durability Test - Cyclic - Type l Test Procedure:

 For chairs with backrest widths less than or equal to 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 120,000 cycles.

For chairs with backrest widths greater than 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 80,000 cycles.



Section 15 Backrest Durability Test - Cyclic - Type Il and lll Test Procedure:

For chairs with backrest widths less than or equal to 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 120,000 cycles.

For chairs with backrest widths greater than 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 80,000 cycles.
