HD-E710-3-1 Water Shower Test Chamber - IPX5&6
Quick Details
Min. Order:
100 piece(s)
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Quick Details
OK
Contact Supplier

HD-E710-3-1 Water Shower Test Chamber - IPX5&6




STANDARD FEATURES

Item

Specification

Internal chamber size

1000Wx1000Dx1000Hmm

External chamber size

3500Wx1250Dx1800Hmm

IP Code

IPX5

IPX6

Internal diameter of spray nozzle

6.3mm

12.5mm

Delivery rate

12.5L/min±5%

100L/min±5%

Core of the substantial stream

Circle of approximately 40mm diameter at 2.5m distance from nozzle

Circle of approximately 120mm diameter at 2.5m distance from nozzle

Chamber material

Internal: SUS304 stainless steel, external: stainless steel

Turn plate

Φ500mm

Spray duration time

3,10,30,9999 min(adjustable)

Operating time

1-9999min(adjustable)

Controller

PLC touch screen

Turntable

Diameter 300mm, rotate speed 3±1R/min

Distance from nozzle to enclosure surface

Between 2.5m and 3m


GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1380*1150*1870mm

Power supply source: 3-phase, 380V±10%, 50Hz (can be appointed)

Gross Weight: 500kg

HS Code: 8424899909


DETAIL IMAG


Control panelPLC operation interface

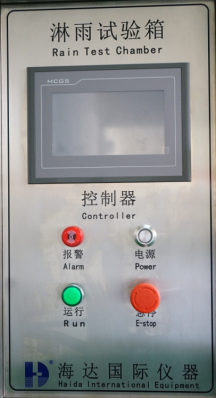

Control panel   ​                                   PLC operation interface


Pressure gauge & Flow meterWater spray nozzle



Pressure gauge & Flow meter           Water spray nozzle

SPRAY NOZZLE DESIGN DRAWING AS PER IEC 60529


SPRAY NOZZLE DESIGN DRAWING AS PER IEC 60529
