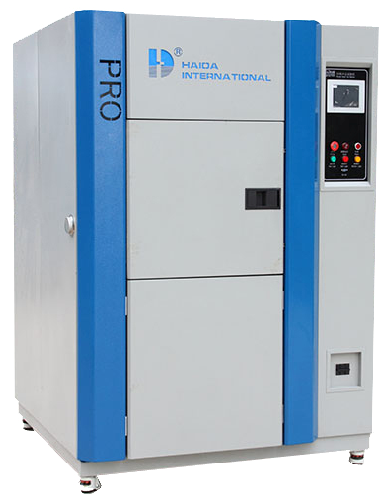

HD-E703-50 THERMAL SHOCK TEST CHAMBER
Quick Details
Min. Order:
100 piece(s)
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Quick Details
OK
Contact Supplier

EQUIPMENT DETAILS

Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.



The equipment is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.


                                                                                                             Images for reference.







PRODUCT FEATURE

1. Good appearance and easy to operate.

2. LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.

4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.

6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.

7. With RS-232C communication port for connecting PC to control, record and save test report.



MAIN PARAMETER

Model

HD-E703-50

Test method

High/ Low temperature chamber/ Test Area (Three zone)

Inner dimension (W*D*H)

350*350*400mm

External dimension (W*D*H)

1230*1270*1830mm

Setting Temperature range

-40 ~ +150C

Pre-heating chamber temperature range

+60 ~ 165

Pre-cooling chamber temperature range

-10 ~ -60

Temperature fluctuation

±1

Thermal recovery time

Within 5 minutes

External material

Antirust processing cold-rolled steel sheet

Internal material

SUS#304 stainless steel

Thermal insulation material

Polyurethane foam and fiberglass

Coolant

R404A / R23

Cooling method

Air / Water cooling

Power supply

Three phase, 380V, 50Hz




High temperature chamber:

Heater: NI-CR alloy electric heater

Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.



Low temperature chamber:

Cooler: Fin cooler, regenerator

Draught fan: centrifugal fan



Refrigerating device:

Cooling system: complex overlapping efficient cryogenic loop system

Compressor: Tecumseh compressor

Refrigerant: environmental protection refrigerant R23/R404A

Condensation: Stainless steel welded plate heat ex-changer



Additional functions:

Indication lamp of test chamber,

Test hole for wire routing

Time meter



Safety device:

Power overload protection

Leakage protection

Control circuit overload protection

Short-circuit protection

Compressor overload protection



CHAMBER STRUCTURE (THREE ZONE)



WORKING PRINCIPLE



DETAILED IMAGES


Production line and stock image:

Cutting machine


Bending machine


Chamber shell



Chamber shell



Stock chamber



Chamber in stock



Company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 10 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



See what company you will work with?



1. Professional Manufacturer of various kinds of testing equipments over 10 years, defect rate is controlled under 0.02%.

2.  Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.

3.  ISO 9001:2008 Quality Management System Certificate.

4. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…

5. Our Marketing Investigation Department will send Marketing Research Report to you each season.

6. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.

7. We accept 100% inspection.

8. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
